TaM Montpellier smart home integration, free and open source

Montpellier trams and buses (TaM): real-time departures, delays, line traffic.

• Published by William-De71
• Devices
• Version 0.1.0
• Requires Gladys >=5.3.0
• ★ 0

View on GitHubAll integrations

Overview

This integration brings the TaM, the trams and buses of Montpellier Méditerranée Métropole, into Gladys. It gives the next departures, corrected in real time, with their delay, at the stops you choose (three in the form, up to 10 more with a button), filtered by line and direction. It also follows the traffic of up to six lines (normal, traffic information, disrupted, heavily disrupted), with the alerts of the TaM: diversions, stops not served, works. Each stop and each line becomes a device to show on a dashboard and to use in scenes.

The data come from the official open data of the TaM, published on transport.data.gouv.fr under the ODbL licence: no account, no key. They cover the urban and suburban lines. The timetable (GTFS) is downloaded once a day when it changed, and kept by the integration. The real time (GTFS-RT) of the whole network is read in one request for every followed stop, every minute by default (every 10 minutes while no stop announces anything in the next half hour, at night). The alerts are read every 5 minutes.

A departure is followed in real time once the vehicle left its terminus: its estimated time and its delay are given. Before that it is the timetable, marked "(timetable)". Cancelled trips and stops not served are shown.

This is a cloud integration: it contacts gtfsproxy.e-tam.fr. Nothing else leaves your network.

Requirements

• Gladys Assistant 5.3.0 or later.
• Nothing else: the open data of the TaM need no account and no key.

Configuration

Field	What to type
Stop 1, 2, 3	The name of the stop as written on it ("Comédie", "Gare Saint-Roch") or the code of a platform ("41115").
Line	Only this line: "1", "6", "Amigo". Empty: every line of the stop.
Direction	Only the destinations holding these words: "Gare Sud", "Jacou | Sabines". Empty: both directions.
Followed lines	The lines whose traffic you follow, six at most: "1, 2, 6, 17".
Reading of the real time	Every 30 seconds, minute, 2 minutes or 5 minutes.
Language of the texts	Names of the devices, summaries and outputs of the scenes. Stop names and traffic messages stay in French.

A stop gathers every platform of its name, trams and buses: "Comédie" gives both directions of the trams 1, 2 and 3. The Find a stop button gives the stops holding a few words, with the codes of their platforms and their lines ("Gare Saint-Roch [41135, 41221] → 1, 2, 3"). A few words are enough when only one stop holds them ("rondel" → Rondelet). Test the connection asks for the timetable again and reads each stop and each line right away.

A line is written as on the vehicle: "1" to "5" for the trams, "6", "17", "A", "Amigo"…

More stops than the three of the form (home, work, school…): Add a stop takes the same three fields — stop, line, direction — and follows up to 10 more stops. List the stops shows every followed stop, numbered; Remove a stop takes that number (or the name). The added stops are kept in the configuration of Gladys, so they follow its backups.

Usage

Devices

In the Discover tab, create the devices you want:

• TaM <stop>: the next departure as text ("1 → Gare Sud France · 3 min (+2 min late)"), the wait of the next departure and of the one after (minutes), and the delay of the next one (minutes, published only when it is followed in real time);
• TaM tram 1, TaM line 17…: the traffic as text ("Disrupted traffic: Rugby : La ligne 17 est déviée.") and the number of traffic messages under way.

At night, without any departure in the next three hours, the device shows the first departure of the morning.

Traffic

The TaM publishes alerts: a text, the lines (or the stops) concerned and their periods. The state of a line comes from its heaviest alert under way: heavily disrupted for an interruption, disrupted for a diversion, stops not served or delays, traffic information otherwise; normal without an alert. An alert starting in the next three days is shown as coming.

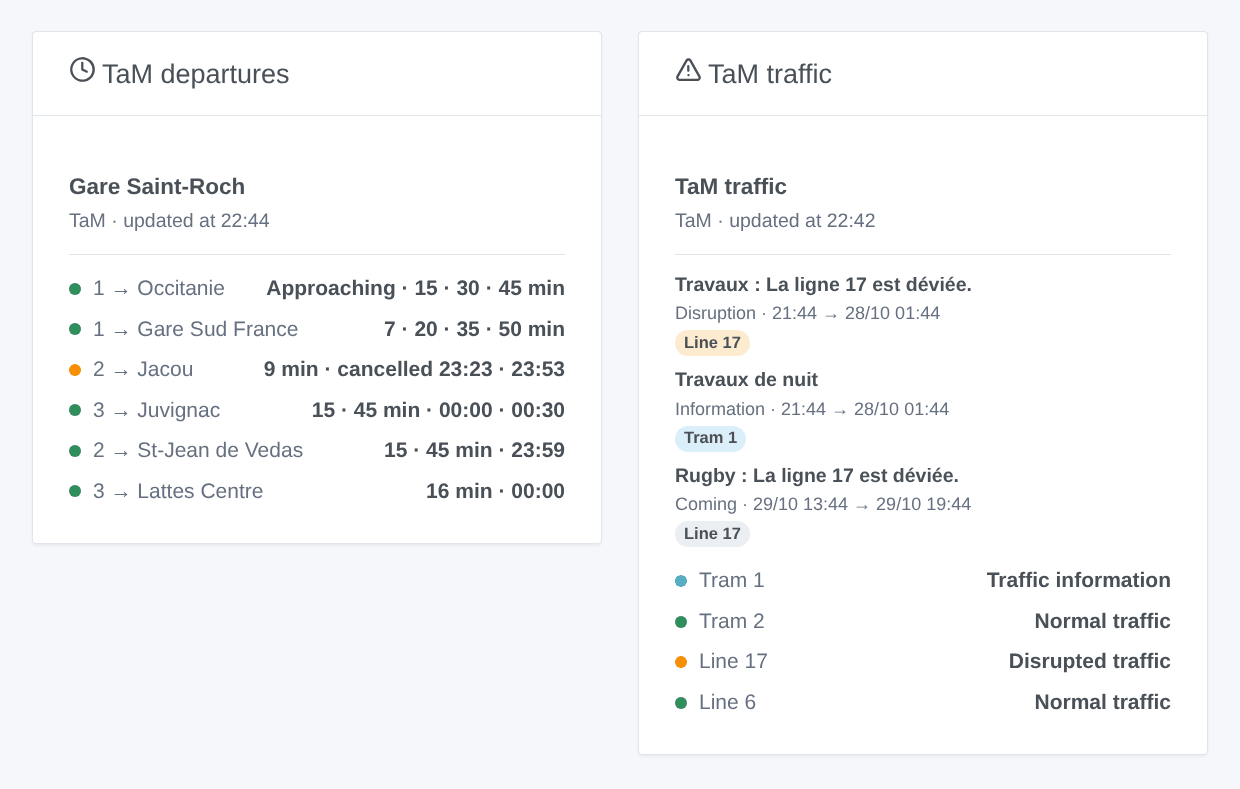

Dashboard widgets

• TaM departures: the next departures of a stop, compact. One row per line and destination, with its next departures in a row ("2 · 17 min"). A cancelled trip is shown ("cancelled 22:48") and turns the row orange, like a delay of 5 minutes or more. The Routes shown setting sets the number of rows. Choose a followed stop, or type any stop (and a line) in the widget settings. With Several stops, one widget shows several stop devices: the devices of one stop are merged under its name; for different stops, each stop opens with a row of its own.
• TaM traffic: the state of each line, then the alerts under way and those of the next three days, with their period. Tap a card for the full text. The followed lines, the ones typed in the settings, or the five tram lines when you follow none.

Scenes

Triggers, once per change (the first reading is only a baseline):

• TaM: departure soon: a departure at a followed stop leaves in 2, 3, 5, 10, 15 or 20 minutes, counted on its real-time estimate.
• TaM: departure cancelled: a trip of the next hour at a followed stop is cancelled, or does not serve the stop.
• TaM: line disrupted: a followed line becomes disrupted or heavily disrupted.
• TaM: back to normal: no disruption under way on the line any more.
• TaM: new traffic message: the TaM publishes an alert about a followed line, under way or coming.

Each gives a ready-made sentence, {{triggerEvent.data.summary}}, and its values (line, destination, time, delay, title, text, start and end…). The actions TaM: next departures and TaM: traffic of a line return the same kind of values, to put in a message or to test in a condition.

Examples:

• When tram 1 towards Gare Sud France leaves Comédie in 5 minutes → turn the hall lamp green.
• When a departure of your stop is cancelled, or line 17 is diverted → send the summary to your phone before you leave.
• Every weekday at 7:30 → read the next departures of your stop and have the kitchen speaker announce them.

Transport

Cloud only: the data come from the internet. The timetable once a day, the real time of the whole network in one request, the alerts every 5 minutes.

Troubleshooting

• "Unknown or ambiguous": use Find a stop, then copy the exact name or a platform code; for a line, its name as on the vehicle ("1", "17", "Amigo").
• "(timetable)" after a departure: the vehicle has not left its terminus yet, or the TaM does not follow it; the time is the one of the timetable.
• No departure in the direction typed: the destinations are the ones written on the vehicles ("Gare Sud France", "Occitanie"); empty the direction to see them all.
• "The open data of the TaM do not answer": the integration tries again at each reading; meanwhile the departures come from the timetable kept.
• To report a problem: press Diagnostic, then copy the lines starting with "TaM diagnostic" from the Logs tab into a GitHub issue or a reply on the forum, with the versions of Gladys and of the integration.

Configuration settings

These are the settings TaM Montpellier asks for in its configuration screen in Gladys.

Setting	Type	Required	Description
TaM open data	section	No	The departures and the traffic come from the official open data of the TaM, the trams and buses of Montpellier Méditerranée Métropole: the timetable (GTFS) and the real time (GTFS-RT) of the urban and suburban lines. No account and no key: fill in your stops and lines below, then press "Test the connection".
Stop 1	section	No	The stop where you take the tram or the bus: its next departures, from the timetable corrected in real time, with their delay. Type its name as written on the stop ("Comédie", "Gare Saint-Roch") or the code of one of its platforms ("41115"): the "Find a stop" button gives them. The line keeps only its departures ("1", "6", "Amigo"). The direction keeps only the destinations holding these words ("Gare Sud", "Jacou | Sabines").
Stop	string	No
Line	string	No	Empty for every line.
Direction	string	No	Words of the destination. Empty for both directions.
Stop 2	section	No
Stop	string	No
Line	string	No	Empty for every line.
Direction	string	No	Words of the destination. Empty for both directions.
Stop 3	section	No	More stops (a home, a workplace, a school…): the "Add a stop" button, under the form, follows up to 10 more, "List the stops" shows them all, numbered, and "Remove a stop" stops following one. The real time of every stop comes in one request.
Stop	string	No
Line	string	No	Empty for every line.
Direction	string	No	Words of the destination. Empty for both directions.
Traffic of the lines	section	No	The lines whose traffic you follow: a device per line, with its state (normal, traffic information, disrupted, heavily disrupted) worked out from the alerts of the TaM, and its traffic messages (works, diversions, stops not served), read every 5 minutes.
Followed lines	string	No	Up to 6, separated by commas.
Options	section	No
Reading of the real time	select	No	How often the real time of the network is read: one request for every followed stop. While no stop announces anything in the next half hour (at night), every 10 minutes. The timetable is read once a day.
Language of the texts	select	No	Names of the devices, summaries and outputs of the scenes. Automatic: the language of your dashboard, as soon as a TaM widget has been shown. Stop names and traffic messages stay in French.

How to install TaM Montpellier in Gladys

1. In Gladys, open Integrations: TaM Montpellier appears in the catalog, next to the native integrations, with a community badge.
2. Click Install. Gladys pulls the Docker image (ghcr.io/william-de71/gladys-tam-montpellier:0.1.0), starts it in a sandbox isolated from the core, and generates the integration's interface (devices, discovery and configuration).
3. Open the Configuration screen of the integration, fill in the settings, and save.
4. You can also install it directly from its repository URL: https://github.com/William-De71/gladys-tam-montpellier.

TaM Montpellier requires Gladys >=5.3.0. The catalog inside Gladys refreshes every hour, so a new version becomes available at most one hour after its release.

Not running Gladys yet? It is free and open source: follow the installation guide to get started.

About external integrations

TaM Montpellier is an external integration: a community integration packaged as a Docker container and published on GitHub, that Gladys installs in one click and runs in a sandbox isolated from its core. It is published and maintained by William-De71, not by the Gladys core team.

• Browse all integrations, native and community
• Build and publish your own external integration
• Source code on GitHub — source of this documentation
