Overview
This integration brings Lignes d'Azur, the trams and buses of the Métropole Nice Côte d'Azur, into Gladys. It gives the next departures, corrected in real time, with their delay, at the stops you choose (three in the form, up to 10 more with a button), filtered by line and direction. Each stop becomes a device to show on a dashboard and to use in scenes, and cancelled trips are reported.
The data come from the official open data of Lignes d'Azur, published on transport.data.gouv.fr under the Licence Ouverte 2.0 (Etalab): no account, no key. The timetable (GTFS) is downloaded once a day when it changed, and kept by the integration. The real time (GTFS-RT) of the whole network is read in one request for every followed stop, every minute by default (every 10 minutes while no stop announces anything in the next half hour, at night).
A departure is followed in real time a little before it leaves its terminus: its estimated time and its delay are given. Before that it is the timetable, marked "(timetable)". The trams are run to a frequency: the real time often announces them a few minutes before the timetable, and then gives no delay.
Lignes d'Azur publishes no traffic information in open data (no alert in the GTFS-RT, none in its SIRI feed): the integration does not show the traffic of the lines.
This is a cloud integration: it contacts chouette.enroute.mobi (timetable) and ara-api.enroute.mobi (real time), the open data servers of the network. Nothing else leaves your network.
Requirements
- Gladys Assistant 5.3.0 or later.
- Nothing else: the open data of Lignes d'Azur need no account and no key.
Configuration
| Field | What to type |
|---|---|
| Stop 1, 2, 3 | The name of the stop as written on it ("Masséna", "Gare Thiers / Poste") or the code of a platform ("MASSE2"). |
| Line | Only this line: "L1", "tram 2", "5", "Exp2". Empty: every line of the stop. |
| Direction | Only the destinations holding these words: "Hôpital Pasteur", "Aéroport | Port Lympia". Empty: both ways. |
| Reading of the real time | Every 30 seconds, minute, 2 minutes or 5 minutes. |
| Language of the texts | Names of the devices, summaries and outputs of the scenes. Stop names and destinations stay in French. |
A stop gathers the platforms of one name in one place, trams and buses: "Jean Médecin" gives both directions of the trams L1, L2 and L3 and the buses calling there. The same name in two places (such as "Le Château" in Nice and in Cagnes-sur-Mer) makes two stops: type the code of one of its platforms then. The Find a stop button gives the stops holding a few words, with the codes of their platforms and their lines ("Masséna [MASSE0, MASSE2, MASSV7] → L1, 8+, 12+, Exp3"). A few words are enough when only one stop holds them. Test the connection asks for the timetable again and reads each stop right away.
A line is written as on the vehicle: "L1", "L2", "L3" and "B" for the trams ("tram 1" or "T1" work too), "5", "8+", "Exp2", "C"…
More stops than the three of the form (home, work, school…): Add a stop takes the same three fields — stop, line, direction — and follows up to 10 more stops. List the stops shows every followed stop, numbered; Remove a stop takes that number (or the name). The added stops are kept in the configuration of Gladys, so they follow its backups.
Usage
Devices
In the Discover tab, create the devices you want. Lignes d'Azur <stop> gives the next departure as text ("L1 → Hôpital Pasteur · 3 min (+2 min late)"), the wait of the next departure and of the one after (minutes), and the delay of the next one (minutes, published only when it is followed in real time; a departure announced early counts 0).
At night, without any departure in the next three hours, the device shows the first departure of the morning.
Dashboard widget

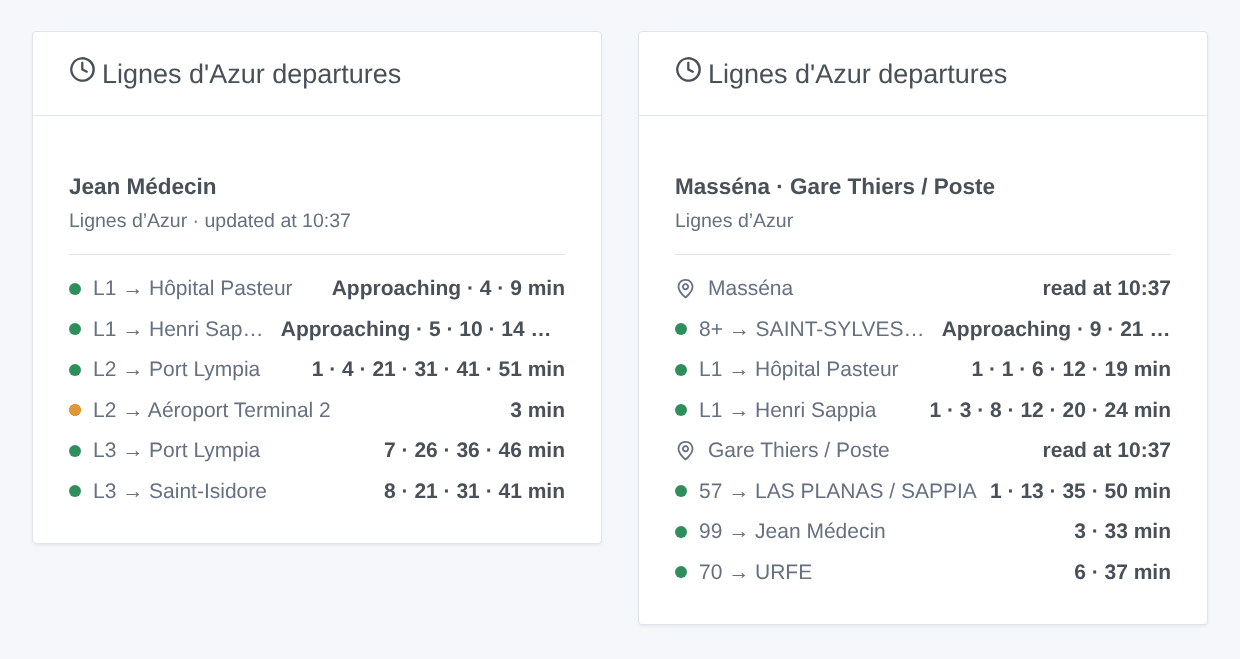

Lignes d'Azur departures shows the next departures of a stop, compact. One row per line and destination, with its next departures in a row ("2 · 17 min"). A cancelled trip is shown ("cancelled 10:48") and turns the row orange, like a delay of 5 minutes or more. The Routes shown setting sets the number of rows. Choose a followed stop, or type any stop (and a line) in the widget settings. With Several stops, one widget shows several stop devices: the devices of one stop are merged under its name; for different stops, each stop opens with a row of its own.
Scenes
Triggers, once per change (the first reading is only a baseline):
- Lignes d'Azur: departure soon: a departure at a followed stop leaves in 2, 3, 5, 10, 15 or 20 minutes, counted on its real-time estimate.
- Lignes d'Azur: departure cancelled: a trip of the next hour at a followed stop is cancelled, or does not serve the stop.
Each gives a ready-made sentence, {{triggerEvent.data.summary}}, and its values (line, destination, time, delay…). The action Lignes d'Azur: next departures returns the same kind of values, to put in a message or to test in a condition.
Examples:
- When the tram L1 towards Hôpital Pasteur leaves Masséna in 5 minutes → turn the hall lamp green.
- When a departure of your stop is cancelled → send the summary to your phone before you leave.
- Every weekday at 7:30 → read the next departures of your stop and have the kitchen speaker announce them.
Transport
Cloud only: the data come from the internet. The timetable once a day, the real time of the whole network in one request.
Troubleshooting
- "Unknown or ambiguous": use Find a stop, then copy the exact name or a platform code (a name found in two places needs a platform code); for a line, its name as on the vehicle ("L1", "5", "Exp2").
- "(timetable)" for a departure: the trip is not followed in real time yet (it has not left its terminus), or Lignes d'Azur does not follow it; the time is the one of the timetable.
- A tram earlier than the timetable: the trams run to a frequency, and the real time gives the time of the tram really coming; the delay then stays at 0.
- No departure in the direction typed: the destinations are the ones written on the vehicles ("Hôpital Pasteur", "Henri Sappia", "CADAM / Centre Administratif"); empty the direction to see them all.
- No line traffic: Lignes d'Azur publishes no traffic alert in open data; see lignesdazur.com.
- "The open data of Lignes d’Azur do not answer": the integration tries again at each reading; meanwhile the departures come from the timetable kept.
- To report a problem: press Diagnostic, then copy the lines starting with "Lignes d’Azur diagnostic" from the Logs tab into a GitHub issue or a reply on the forum, with the versions of Gladys and of the integration.
Configuration settings
These are the settings Lignes d'Azur Nice asks for in its configuration screen in Gladys.
| Setting | Type | Required | Description |
|---|---|---|---|
| Lignes d'Azur open data | section | No | The departures come from the official open data of Lignes d'Azur, the trams and buses of the Métropole Nice Côte d'Azur: the timetable (GTFS) and the real time (GTFS-RT). No account and no key: fill in your stops below, then press "Test the connection". The network publishes no traffic information in open data: the integration shows no line traffic. |
| Stop 1 | section | No | The stop where you take the tram or the bus: its next departures, from the timetable corrected in real time, with their delay. Type its name as written on the stop ("Masséna", "Gare Thiers / Poste") or the code of one of its platforms ("MASSE2"): the "Find a stop" button gives them. The line keeps only its departures ("L1", "tram 2", "5", "Exp2"). The direction keeps only the destinations holding these words ("Hôpital Pasteur", "Aéroport | Port Lympia"). |
| Stop | string | No | |
| Line | string | No | Empty for every line. |
| Direction | string | No | Words of the destination. Empty for both directions. |
| Stop 2 | section | No | |
| Stop | string | No | |
| Line | string | No | Empty for every line. |
| Direction | string | No | Words of the destination. Empty for both directions. |
| Stop 3 | section | No | More stops (a home, a workplace, a school…): the "Add a stop" button, under the form, follows up to 10 more, "List the stops" shows them all, numbered, and "Remove a stop" stops following one. The real time of every stop comes in one request. |
| Stop | string | No | |
| Line | string | No | Empty for every line. |
| Direction | string | No | Words of the destination. Empty for both directions. |
| Options | section | No | |
| Reading of the real time | select | No | How often the real time of the network is read: one request for every followed stop. While no stop announces anything in the next half hour (at night), every 10 minutes. The timetable is read once a day. |
| Language of the texts | select | No | Names of the devices, summaries and outputs of the scenes. Automatic: the language of your dashboard, as soon as a Lignes d'Azur widget has been shown. Stop names and destinations stay in French. |
How to install Lignes d'Azur Nice in Gladys
- In Gladys, open Integrations: Lignes d'Azur Nice appears in the catalog, next to the native integrations, with a community badge.
- Click Install. Gladys pulls the Docker image (
ghcr.io/william-de71/gladys-lignes-dazur:0.1.0), starts it in a sandbox isolated from the core, and generates the integration's interface (devices, discovery and configuration). - Open the Configuration screen of the integration, fill in the settings, and save.
- You can also install it directly from its repository URL: https://github.com/William-De71/gladys-lignes-dazur.
Lignes d'Azur Nice requires Gladys >=5.3.0. The catalog inside Gladys refreshes every hour, so a new version becomes available at most one hour after its release.
Not running Gladys yet? It is free and open source: follow the installation guide to get started.
About external integrations
Lignes d'Azur Nice is an external integration: a community integration packaged as a Docker container and published on GitHub, that Gladys installs in one click and runs in a sandbox isolated from its core. It is published and maintained by William-De71, not by the Gladys core team.
