FYTA smart home integration, free and open source
FYTA Beam plant sensors: soil moisture, light, temperature and care alerts.
Published by William-De71
- Devices
- Version 0.1.0
- Requires Gladys >=5.1.0
- ★ 0
Overview
This integration brings the plants of your FYTA account into Gladys: the measurements of your FYTA Beam plant sensors (soil moisture, light, temperature, battery) and what FYTA thinks of them (too low, perfect, too high), through the official FYTA Public API with the e-mail address and the password of your FYTA account. It only reads. It is not affiliated with FYTA.
- One device per plant that has a sensor: soil moisture, light, temperature, sensor battery and its low flag, the pH when FYTA gives one, and the states FYTA gives (plant, soil moisture, light, temperature, salinity, nutrients).
- Two dashboard widgets: the plants to care for, the worst first; one plant with its picture.
- Scene triggers: plant needs attention, plant thirsty, measure out of range, measure back in range, sensor battery low, sensor silent, sensor back, fertilizing due, access refused.
- Scene actions: refresh now, the values of a plant, the summary of the plants to care for.
Transport: cloud. The e-mail address and the password go to FYTA (web.fyta.de) to log in; the measurements of your plants come from the FYTA cloud, which receives them from your Beams through the FYTA Hub or the FYTA app.
Prerequisites
- Gladys Assistant 5.1.0 or later.
- A FYTA account (the one of the FYTA app) with at least one plant linked to a FYTA Beam sensor. Plants without a sensor are not offered.
- The measurements must reach the FYTA cloud: through a FYTA Hub, or through the FYTA app when your phone is near the Beam. Without a hub, the values only change when the app syncs.
- The API logs in with an e-mail address and a password only: use the ones you sign in with in the FYTA app.
How fresh the data are: a Beam sends its measurements about once an hour. Reading FYTA more often brings nothing new; FYTA marks a sensor in error after 1.5 hours without a measurement.
Configuration
| Field | Meaning |
|---|---|
| E-mail address | The e-mail of your FYTA account |
| Password | Its password (a secret: never shown again, never written to the logs nor to /data) |
| Reading of the plants | Every 10, 15 (default), 30 or 60 minutes; the details of a plant are read only when FYTA shows news |
| Sensor without data after | 2, 3 (default), 6, 12 or 24 hours without a new measurement |
| Language of the texts | Feature names, states (too low, perfect…), scene texts and errors; automatic follows the last widget |
Buttons:
- Test the connection logs in to FYTA and lists the plants with a sensor (and how many have none).
- Diagnostic writes the state of the integration to its logs, without the password nor the token.
The integration keeps the access token FYTA gives at the login in /data (readable by the integration only) until it expires (60 days according to the FYTA documentation), so that a restart does not log in again.
Usage
Devices
After the configuration, open Discover: each plant with a sensor is offered as a device named after its nickname in the FYTA app. Add the ones you want.
| Feature | Category / type | Unit |
|---|---|---|
| Soil moisture | soil-moisture-sensor / decimal | % |
| Light (photon flux, as FYTA measures it) | light-sensor / decimal | µmol/m²/s |
| Temperature | temperature-sensor / decimal | °C |
| Soil pH (only when FYTA gives one) | ph-sensor / decimal | pH |
| Sensor battery | battery / integer | % |
| Sensor battery low | battery-low / binary | — |
| States: plant, soil moisture, light, temperature, salinity, nutrients | text / text | — |
The light is a photon flux (PPFD, µmol/m²/s), not lux: Gladys has no unit for it, so the value shows without one and its name says it. The salinity (fertilizer, mS/cm) has no matching category in Gladys: its state is a feature, its value is in the widget and the scenes.

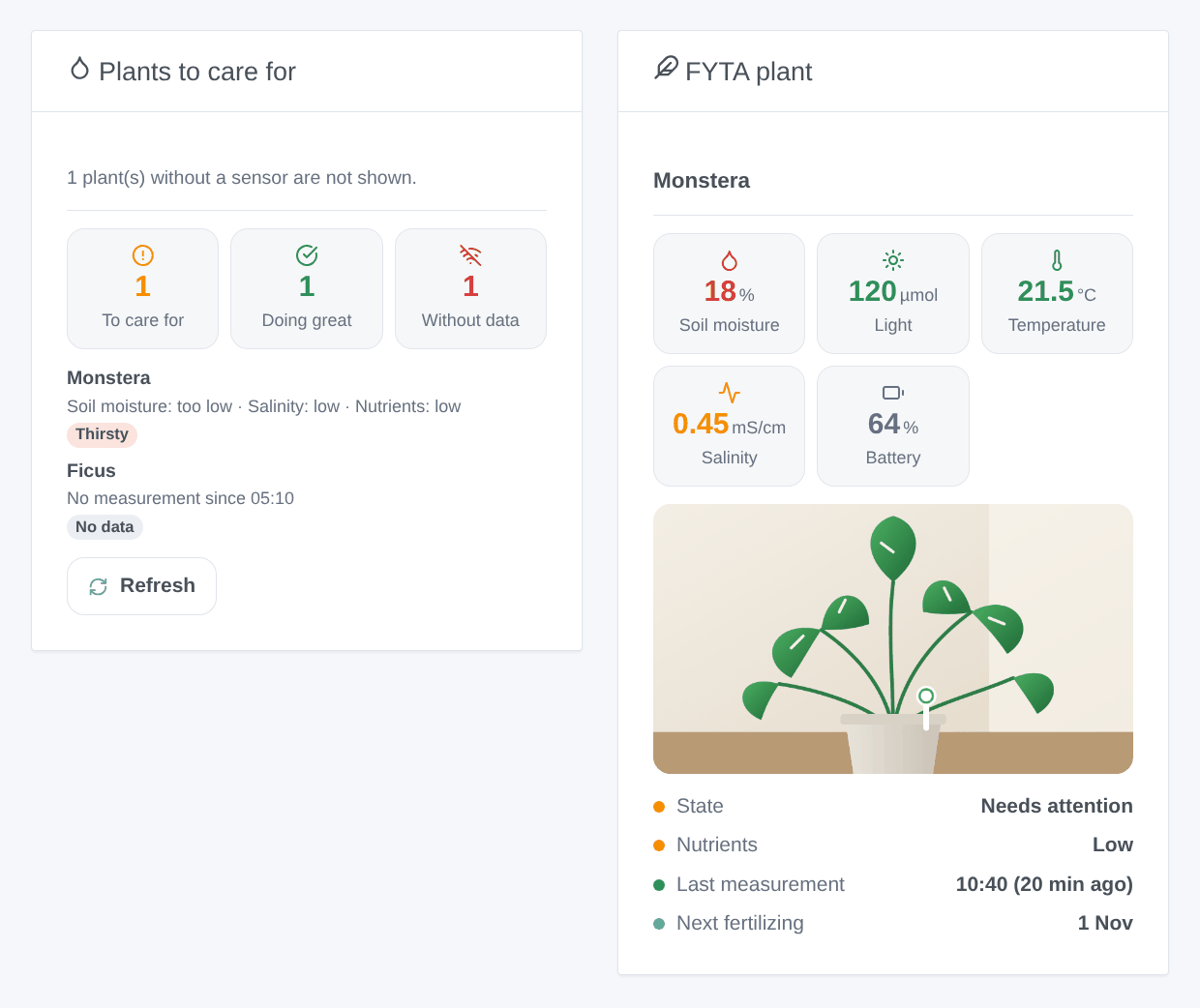

Dashboard widgets
- Plants to care for: how many plants need care, are doing great, send no data; then the plants to look after, the worst first (thirsty, far out of range, out of range, silent sensor, low battery). Tap a plant for the values and their ideal range. The Refresh button reads FYTA now (once a minute at most).
- FYTA plant: one plant (choose it in the settings of the widget; the first one by default): its picture from the FYTA app, soil moisture, light, temperature, salinity and battery colored by their state, the state of the plant and of its nutrients, the last measurement and the next fertilizing date.
Scenes
Triggers (once per change, never at the first reading, never because of a scene action), filtered by plant:
- Plant needs attention: FYTA's state of the plant goes from "doing great" to "needs attention".
- Plant thirsty: the soil moisture enters the low or too low range of the plant.
- Measure out of range: soil moisture, light, temperature, salinity or nutrients changes to low, too low, high or too high (filters: measures, levels).
- Measure back in range: a measure comes back to perfect.
- Sensor battery low: FYTA flags the battery of the sensor.
- Sensor silent / Sensor back: no measurement for the delay of the configuration, then measurements again.
- Fertilizing due: the date FYTA planned is reached, at 9:00.
- Access refused: FYTA refuses the e-mail address, the password or the account.
Actions:
- Refresh now: reads every plant (once a minute at most); returns the number of plants and of plants to care for.
- Values of a plant: soil moisture, light, temperature, salinity, battery, their states and a sentence, from the last reading.
- Plants to care for: how many, which and why, in a sentence — for a daily message.
Examples:
- When FYTA: plant thirsty → send "{{triggerEvent.data.plant_name}} is thirsty ({{triggerEvent.data.moisture}} %)".
- Every day at 8:00 → FYTA: plants to care for; if the number is above 0 → send its summary.
- When FYTA: sensor silent → send "No news from {{triggerEvent.data.plant_name}} for {{triggerEvent.data.hours_without_data}} h: is the hub on?".
Troubleshooting
- "FYTA does not know this e-mail address" or "refused the password": check them by signing in to the FYTA app with the same e-mail address and password.
- No device offered: only plants linked to a Beam are offered; press Test the connection to see what FYTA gives.
- Values that do not change: the Beam needs a FYTA Hub, or the FYTA app open near it, to send its measurements; the "Last measurement" row of the plant widget tells when FYTA last received one.
- Light without a unit: on purpose, see Devices.
- A temperature in °F in the FYTA app: the integration converts it to °C when FYTA says so (not tested with a real account).
- For an issue, give the versions of Gladys and of the integration, the message of Test the connection and the "FYTA diagnostic" lines written by Diagnostic in the logs of the integration. Never paste your password.
Configuration settings
These are the settings FYTA asks for in its configuration screen in Gladys.
| Setting | Type | Required | Description |
|---|---|---|---|
| FYTA account | section | No | Enter the e-mail address and the password you use in the FYTA app. The integration logs in to the official FYTA API (web.fyta.de) and only reads your plants: the measurements travel through the FYTA cloud, sent by the FYTA Hub or the app. Plants without a FYTA Beam sensor are not offered. This integration is not affiliated with FYTA. |
| E-mail address | string | Yes | |
| Password | secret | Yes | |
| Readings and triggers | section | No | A FYTA Beam sends its measurements about once an hour (through the FYTA Hub, or the app when the phone is near): reading more often brings nothing new. The details of a plant are read only when FYTA shows something new for it. |
| Reading of the plants | select | No | How often the list of the plants is read (one request for all). |
| Sensor without data after | select | No | Time without a new measurement before a sensor is shown without data and the “sensor silent” trigger fires. |
| Language of the texts | select | No | Feature names, states (too low, perfect…), scene texts and errors. Automatic: the language of the last widget shown. |
How to install FYTA in Gladys
- In Gladys, open Integrations: FYTA appears in the catalog, next to the native integrations, with a community badge.
- Click Install. Gladys pulls the Docker image (
ghcr.io/william-de71/gladys-fyta:0.1.0), starts it in a sandbox isolated from the core, and generates the integration's interface (devices, discovery and configuration). - Open the Configuration screen of the integration, fill in the settings, and save.
- You can also install it directly from its repository URL: https://github.com/William-De71/gladys-fyta.
FYTA requires Gladys >=5.1.0. The catalog inside Gladys refreshes every hour, so a new version becomes available at most one hour after its release.
Not running Gladys yet? It is free and open source: follow the installation guide to get started.
About external integrations
FYTA is an external integration: a community integration packaged as a Docker container and published on GitHub, that Gladys installs in one click and runs in a sandbox isolated from its core. It is published and maintained by William-De71, not by the Gladys core team.
- Browse all integrations, native and community
- Build and publish your own external integration
- Source code on GitHub — source of this documentation
